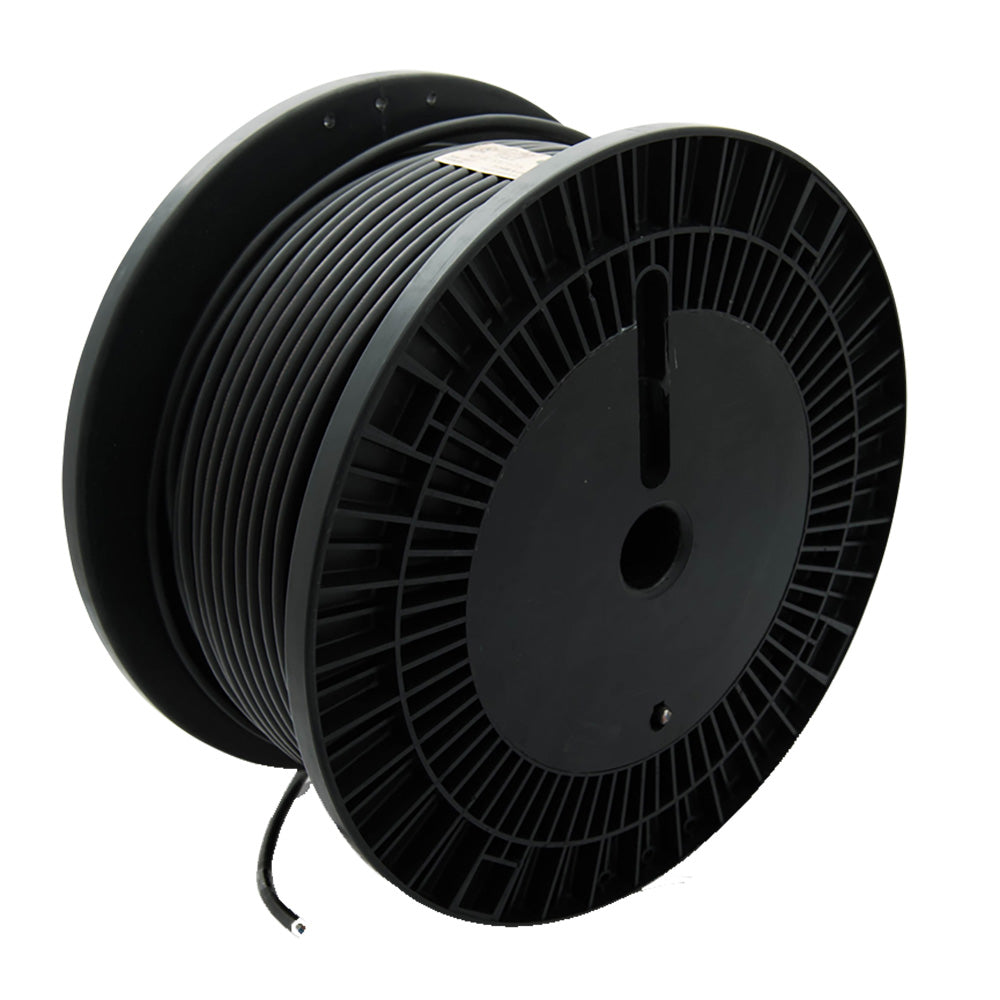

Actisense NMEA2000 Micro Bulk Cable Reel - 100M [A2K-BULK-100M]
NMEA2000 Micro Bulk Cable Reel - 100MCreate or extend an NMEA 2000 backbone of flexible lengths to suit any installation.The Actisense NMEA 2000 Bulk Lite cable is available in 100-meter reels and is ideal for use with the Actisense QNB-1 Quick Network Block or Field Fit Connectors (FFC).NMEA 2000 cable... read more
- Regular price
-
$532.00
- Regular price
-
List: $0.00-Infinity% off ($-532.00) - Sale price
-
$532.00
- Unit price
- per
SHOP WITH CONFIDENCE
RECREATION OUTFITTERS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within time frame shown under the add to cart button.
90-Day Returns
Return all new, unused, and unassembled items in their original packaging, and we'll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items not applicable for returns.
Restocking FeeFor items that have been dropshipped from our supplier. A 20% restocking fee will be deducted from any eligible return
EXCEPTIONS: Holiday Trees and Decor are not eligible for return after the corresponding holiday. For instance, a tree purchased on December 10th must be returned before Christmas of that year, even if the 90-day return policy period has not yet expired.
NMEA2000 Micro Bulk Cable Reel - 100M
Create or extend an NMEA 2000 backbone of flexible lengths to suit any installation.
The Actisense NMEA 2000 Bulk Lite cable is available in 100-meter reels and is ideal for use with the Actisense QNB-1 Quick Network Block or Field Fit Connectors (FFC).
NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.
The maximum permitted length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters. To help with this limitation, Actisense has drop cable assemblies in varying lengths from 0.25 meters to 6 meters.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Cable Specifications:
- Rated Voltage - 60VDC
- Rated Current - 3A
- Braid Material - 37 AWG tinned copper
- Braid Coverage - 65% minimum
- Jacket Material - 0.8mm Nom. PVC, black
- Jacket Outer Diameter - 6.85mm ±0.254mm
- Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10mΩ/M)
- Reel Length - 100m
- Reel Weight - 7.7kg/16.9lbs
Power Pair Specifications:
- Conductor - 22 AWG (19-strand tinned copper)
- Insulation - 0.3 mm Nom. PVC
- Diameter - 1.43mm ±0.05mm
- Colors - Red & black
- Shield - AL Mylar tape over pair
- DC Resistance - 17.5Ω / 1000ft (57mΩ/M)
Data Pair Specifications:
- Conductor - 24 AWG (19-strand tinned copper)
- Insulation - 0.65 mm Nom. foam PE
- Diameter - 2.0mm ±0.05mm
- Colors - Blue & white
- Shield - AL Mylar tape over pair
- Impedance - 120Ω ±10%
- DC Resistance - 28Ω / 1000 ft (92mΩ/M)
- Attenuation @ 125 kHz - 0.29dB / 100ft
- Attenuation @ 500 kHz - 0.50dB / 100ft
- Attenuation @ 1 MHz - 0.70dB / 100ft
Drain Specifications:
- Conductor - 22 AWG (19-strand tinned copper)
- DC Resistance - 17.5Ω / 1000ft (57mΩ/M)
Technical Specifications:
- Operating Temperature - -25°C to +75°C
- Storage Temperature - -40°C to +85°C
Specifications:
- Cable Length (Feet): 328'
- Data Interface: NMEA 2000
