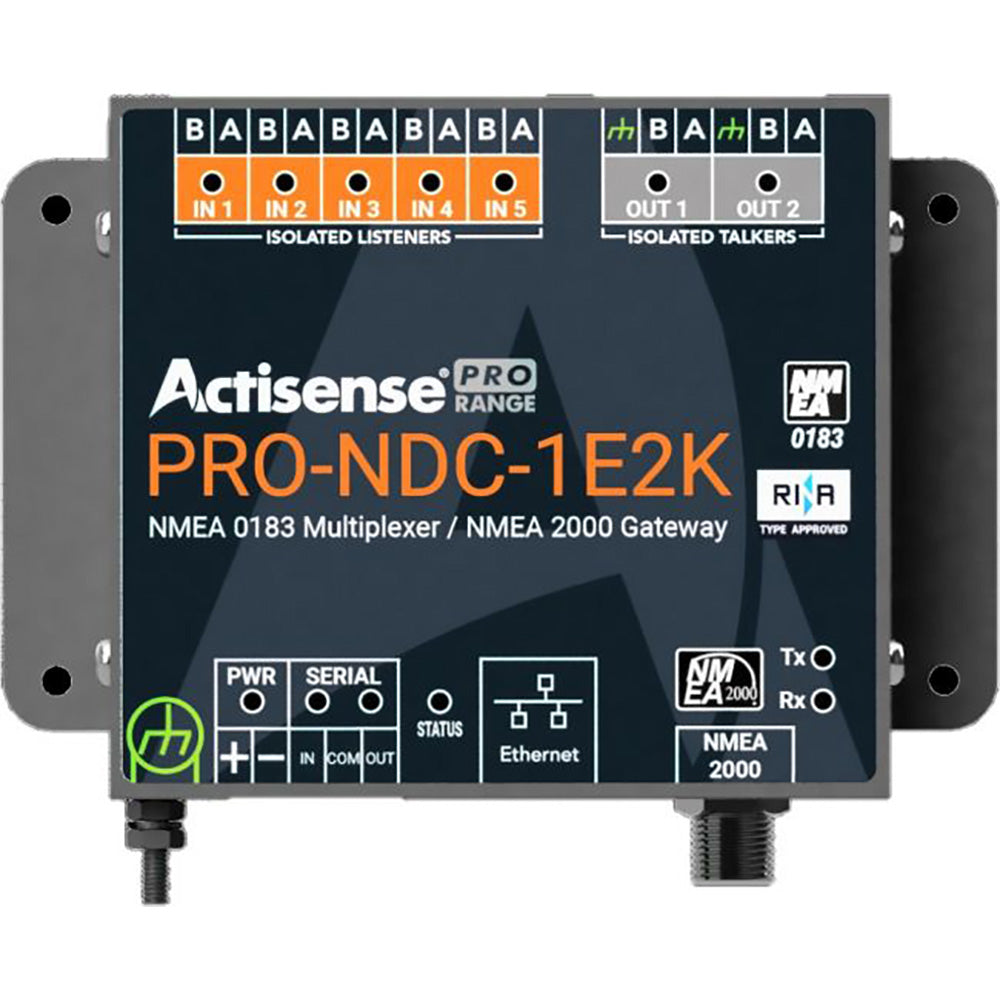

Actisense Pro NMEA 0183 Multiplexer/NMEA 2000 Gateway [PRO-NDC-1E2K]
Actisense Pro NMEA 0183 Multiplexer/NMEA 2000 Gateway [PRO-NDC-1E2K]

Actisense Pro NMEA 0183 Multiplexer/NMEA 2000 Gateway [PRO-NDC-1E2K]

Pro NMEA 0183 Multiplexer/NMEA 2000 GatewayInterconnectivity, reimagined!The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2KFeatures:... read more
SKU: CWR-106691
Vendor: Actisense
Availability: Out Of Stock
Product Type: NMEA Cables & Sensors
$674.22
List: $0.00 -Infinity% off ($-674.22)
$674.22

SHOP WITH CONFIDENCE

RECREATION OUTFITTERS STANDS BEHIND EVERY TRANSACTION

100%

Satisfaction Guaranteed

Easy Shipping

Price Match

SHOP WITH CONFIDENCE


100% Guarantee & Easy Returns

We want you to be happy with your Recreation Outfitter experience. If you are not satisfied with the service you receive, please contact us immediately and we will remedy the situation. When your order arrives, inspect it carefully to confirm the product meets your satisfaction. If for any reason it does not, we will gladly exchange it, or you may return it for your money back! For more information, see our return policy.

FREE and Fast Shipping

We offer FREE shipping on marked orders to anywhere in the contiguous United States. Expedited shipping options are also available during checkout. Most orders ship the same day if ordered by 1pm PST. Exclusions apply to oversized items, or made-to-order items For more information, view our shipping rates.

Price Match Guarantee

We know that making an investment in your gear involves a number of decisions, including evaluating the best price. The prices you see listed on our website are among the most competitive you will find anywhere!

If you find a lower price on an identical product from one of our competitors, you're covered under our Price Match Guarantee. We'll match their price, which means you can enjoy shopping and not worry that you'd be getting a better deal elsewhere! See qualifying details here

Our goal is to make this policy simple and hassle-free. You will find that we respond to your requests quickly and in most cases can approve the price match the same day.

Before making your online purchase, please contact our Customer Service Team at  (888) 351-8180 to request a price match. Please provide us with the competitor's website and we will confirm the item qualifies for our Price Match Guarantee.

For more information, view our price match policy.

Shipping & Returns

When Will My Item Arrive?

Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.

We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:
  • Your freight carrier will call you to schedule a delivery window of about 4–8 hours
  • You’re required to be physically present at the specified delivery location during the scheduled window
  • Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
  • Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
  • For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
  • You must sign for the shipment to indicate that you’ve accepted the delivery

Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.

This item leaves our warehouse within time frame shown under the add to cart button.

90-Day Returns

Return all new, unused, and unassembled items in their original packaging, and we'll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items not applicable for returns.

Restocking Fee

For items that have been dropshipped from our supplier. A 20% restocking fee will be deducted from any eligible return

EXCEPTIONS: Holiday Trees and Decor are not eligible for return after the corresponding holiday. For instance, a tree purchased on December 10th must be returned before Christmas of that year, even if the 90-day return policy period has not yet expired.

Pro NMEA 0183 Multiplexer/NMEA 2000 Gateway

Interconnectivity, reimagined!

The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…

Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.

Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2K

Features:

  • Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
  • Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
  • Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
  • Easy to configure using the web based UI, no need to manually enter and edit strings of text.
  • RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
  • Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
  • Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network.
  • Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment.
  • NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
  • NMEA 2000 data streaming over Ethernet.
  • 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
  • Type-approved (RINA).
  • NMEA 0183 Ethernet streaming
  • NMEA 2000 Ethernet streaming
  • NMEA 2000 output via M12
  • 5x Configurable Opto-isolated NMEA 0183 inputs.
  • 2x Configurable ISO-Drive isolated NMEA 0183 outputs.
  • 1x Bi-directional, configurable, isolated serial port.
  • Automatic baud rate matching on inputs.
  • Advanced data filtering / routing.
  • Free firmware updates making the device future-proof.
  • Diagnostic LEDs on all inputs and outputs.
  • Bi-colour status LED.
  • Panel mountable.
  • Stainless Steel housing for added durability
  • Quick and easy to install
  • Configuration using standard web browser, no PC operating system compatibility issues
  • Advanced features solve NMEA 0183 data routing problems
  • Fully isolated with ISO-Drive technology for peace of mind
  • Easy firmware updates make the device future-proof
  • Type Approved (RINA)

Technical Specifications:

Power Supply

  • Input supply voltage - 9 to 35 V DC
  • Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
  • Input protection - Continuous reverse polarity, transient overvoltage and ESD protection
  • Power indicator - LED, Blue – indicates unit is functioning correctly
  • Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

NMEA 0183 Port – Listener & Talker

  • Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners
  • Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers
  • Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
  • Speed / baud rate - 4800 to 38400 bps
  • Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
  • Talker Output Current Drive - 20 mA maximum per output
  • Talker Output Protection - Short circuit and ESD
  • Talker Data Indicator - LED, Orange (Flashes with data rate)
  • Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
  • Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
  • Listener Data Indicator - LED, Green (Flashes with data rate)
  • Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)

Serial Port

  • Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
  • Speed / baud rate - 115200 bps
  • Output voltage drive - >= 2.1V (differential) into 100 ohm
  • Output current drive - 20 mA max.
  • Output protection - Short circuit and ESD
  • Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
  • Input protection - Current limited, overdrive protection to 40 VDC and ESD protection
  • Data Indicators - LED’s: Green = Receive, Orange = Transmit
  • Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Ethernet Port

  • Host interface - 10/100BaseT, automatic polarity detection
  • Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
  • Connector - RJ45
  • Indicators - Green – Link, Yellow – 100 Mbps

NMEA 2000 Port

  • Compatibility - NMEA 2000 Certification Pending
  • Speed / baud rate - 250 kbps
  • Connectivity - M12 male (A-coded) connector

Isolation

  • NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V
  • NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V
  • Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
  • Ethernet Port - 2kv for 60s
  • NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V

Mechanical

  • Housing Material - 316 Stainless Steel
  • Dimensions - 139mm (W) x 98mm (H) x 26mm (D)
  • Weight - 360g
  • Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications

  • EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
  • Compass Safe Distance - 300mm
  • Type Approval Certificate - RINA
  • Operating Temperature - -25 to +70°C
  • Storage Temperature - -40 to +85°C
  • Relative Humidity (RH) - 95% @ 55°C
  • Environmental Protection - IP40
  • Guarantee - 5 Years when registered
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Cable Length (Feet): N/A
  • Data Interface: NMEA 0183
  • Box Dimensions: 2"H x 6"W x 10"L WT: 1.05 lbs
  • UPC: 5060998710751
