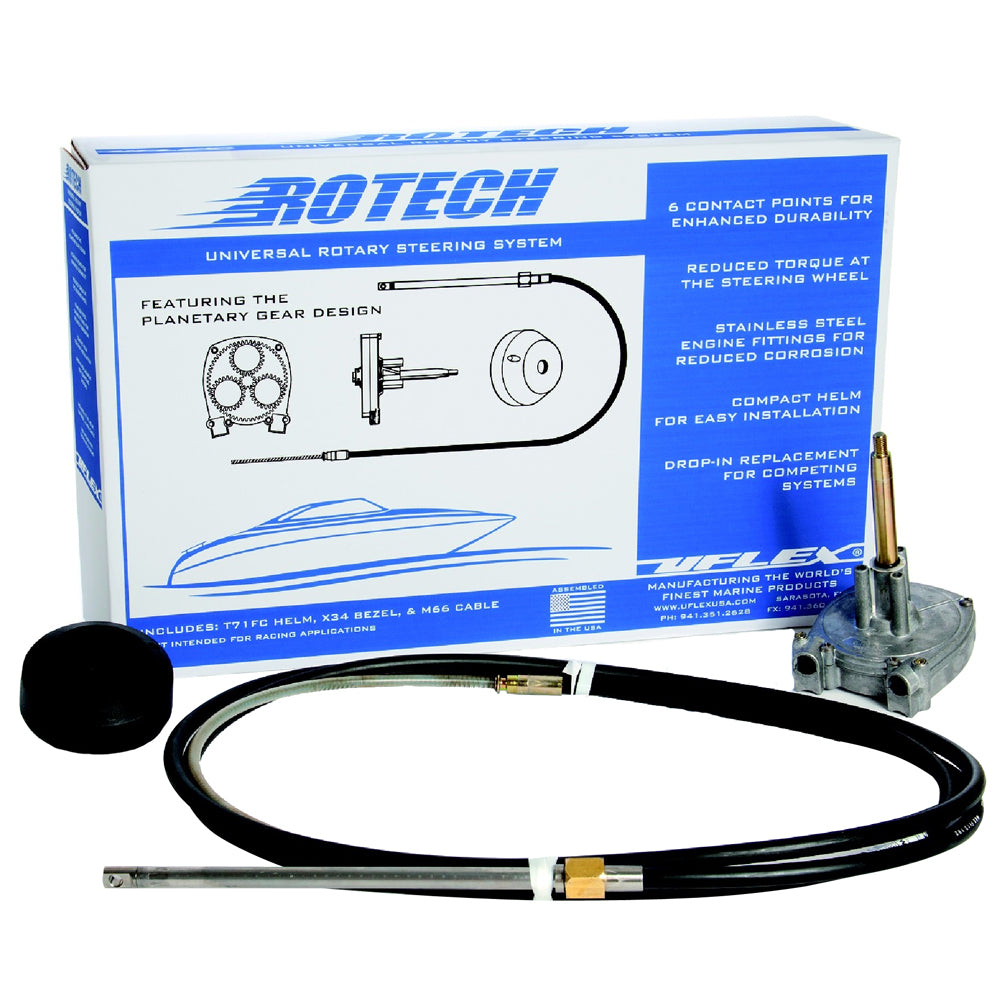

UFlex Rotech 19' Rotary Steering Package - Cable, Bezel, Helm [ROTECH19FC]
ROTECH STEERING SYSTEMROTECH - X19T71FC - helm X34 - 90° bezel M66 - 19' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable... read more
- Regular price
-
$215.46
- Regular price
-
List:-Infinity% off ($-215.46) - Sale price
-
$215.46
- Unit price
- per
ROTECH STEERING SYSTEM
ROTECH - X19
T71FC - helm
X34 - 90° bezel
M66 - 19' steering cable
UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:
A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.
FEATURES AND TECHNICAL SPECIFICATIONS:
- Fast connect, simple installation
- All stainless steel cable output ends
- Corrosion resistant materials
- Particulary suitable where clearance is limited
- Standard 3/4" tapered shaft
- Lock-to-lock steering wheel turns: approx. 3,8
- Stroke: 9" (228 mm)
- Maximum allowable steering wheel diameter: 16" (406 mm)
- Minimum steering cable bend radius: 7.9" (200 mm)
- Minimal feedback
- Compact for mounting
- T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
- For boats faster than 50 mph the twin cable steering system T72FC is recommended
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
**The wheel is not included
Specifications:
- Cable Length (Feet): 19'
- Box Dimensions: 8"H x 18"W x 29"L WT: 15.3 lbs
- UPC: 702755019916
