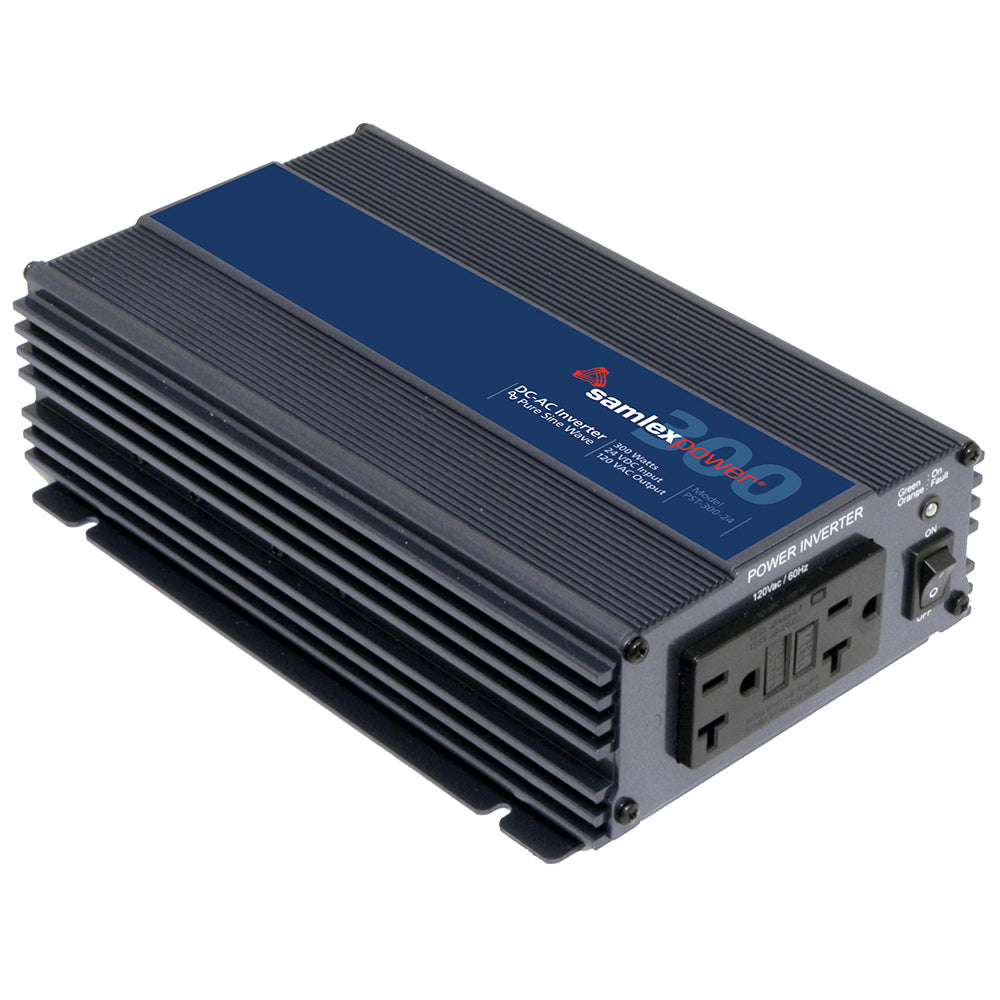

Samlex 300W Pure Sine Wave Inverter - 24V [PST-300-24]
- Regular price
-
$246.80
- Regular price
-
List: $308.5020% off ($61.70) - Sale price
-
$246.80
- Unit price
- per
300W Pure Sine Wave Inverter - 24V
PST Series (120 VAC)
This high efficiency DC-AC inverter converts 24 Volts DC to 300 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with detachable cable with 12V plug adaptor and cable with battery clamps. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Features:
- High efficiency
- Temperature controlled cooling fan – reduces energy consumption
- Low interference Wide operating DC input range: 21.0 - 33.0 VDC
- LED indicators for power and protections
- Low idle power draw
- Dual GFCI protected AC outlets
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Detachable cable with 12V plug adapter
- Detachable cable with battery clamps
- Safety certified to UL standards, FCC compliant
Specifications:
- Input: 24 VC
- Output: 120 VAC
- Watts: 300
- Surge: 500 Watts
- Weight: 3.46 (lbs)
- Weight: 1.57 (kg)
- Dimensions: 6.1 x 9.69 x 2.58 (in)
- Dimensions: 155 x 246 x 65.5 (mm)
- Safety: ETL to UL Standard
- Warranty: 2 Year Limited
Applications:
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Inverter Cont. Output Wattage: 300w
- Outlet Qty: 2 Duplex GFCI
- Inverter Input Voltage: 24v
- Waveform: Pure Sine Wave
- Box Dimensions: 5"H x 8"W x 12"L WT: 4.9 lbs
- UPC: 622988072147
Owner's Manual (pdf)
Brochure (pdf)
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
300W Pure Sine Wave Inverter - 24V
PST Series (120 VAC)
This high efficiency DC-AC inverter converts 24 Volts DC to 300 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with detachable cable with 12V plug adaptor and cable with battery clamps. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Features:
- High efficiency
- Temperature controlled cooling fan – reduces energy consumption
- Low interference Wide operating DC input range: 21.0 - 33.0 VDC
- LED indicators for power and protections
- Low idle power draw
- Dual GFCI protected AC outlets
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Detachable cable with 12V plug adapter
- Detachable cable with battery clamps
- Safety certified to UL standards, FCC compliant
Specifications:
- Input: 24 VC
- Output: 120 VAC
- Watts: 300
- Surge: 500 Watts
- Weight: 3.46 (lbs)
- Weight: 1.57 (kg)
- Dimensions: 6.1 x 9.69 x 2.58 (in)
- Dimensions: 155 x 246 x 65.5 (mm)
- Safety: ETL to UL Standard
- Warranty: 2 Year Limited
Applications:
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Inverter Cont. Output Wattage: 300w
- Outlet Qty: 2 Duplex GFCI
- Inverter Input Voltage: 24v
- Waveform: Pure Sine Wave
- Box Dimensions: 5"H x 8"W x 12"L WT: 4.9 lbs
- UPC: 622988072147
Owner's Manual (pdf)
Brochure (pdf)
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Samlex America
Samlex built power products for the commercial and industrial markets, manufacturing a small line of power inverters, and soon after expanding to converters, battery chargers and power supplies for the telecommunications industry. Samlex now serves a wide range of commercial industries, including public safety, government, work trucks, wireless communications, two-way radio, oil and gas camps, medical cart, warehouses, commercial marine, and many custom applications through our OEM programs. In 2009, Samlex started serving customers’ recreational power needs in the RV, marine, and off-road markets with the launch of the Samlex Solar brand. This means we serve a wide range of people who depend on us every day.
