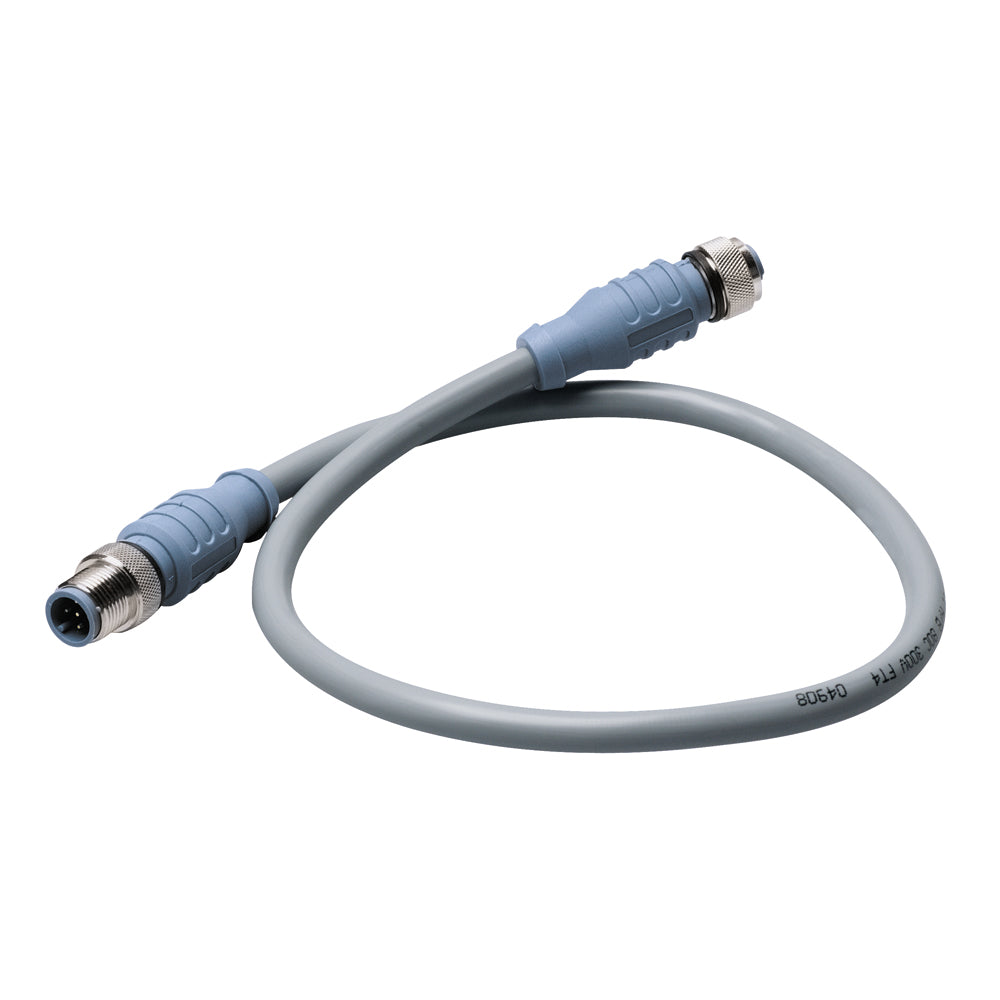

Maretron Micro Double-Ended Cordset - 2 Meter [CM-CG1-CF-02.0]
- Regular price
-
$30.30
- Regular price
-
List:-Infinity% off ($-30.30) - Sale price
-
$30.30
- Unit price
- per
Micro Double-Ended Cordset - 2 Meter
Mechanical:
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59 Electrical
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Specifications:
- Cable Length (Feet): 6'
- Box Dimensions: 1"H x 7"W x 7"L WT: 0.35 lbs
- UPC: 873804001524
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
Micro Double-Ended Cordset - 2 Meter
Mechanical:
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59 Electrical
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Specifications:
- Cable Length (Feet): 6'
- Box Dimensions: 1"H x 7"W x 7"L WT: 0.35 lbs
- UPC: 873804001524
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Maretron
Maretron products are the world-class standard in vessel monitoring and control. Designed to harness the power of the NMEA 2000® marine networking protocol, Maretron seamlessly integrates a wide array of instrumentation, electronics and boat systems. The 2019 consolidation of Maretron into Carling Technologies strengthens the Maretron brand, expands the product portfolio and provides global product support to OEMs, dealers, and boaters worldwide. All Maretron products are tested and certified to the IEC 60945 standard for Maritime Navigational and Radiocommunication Equipment and Systems.
