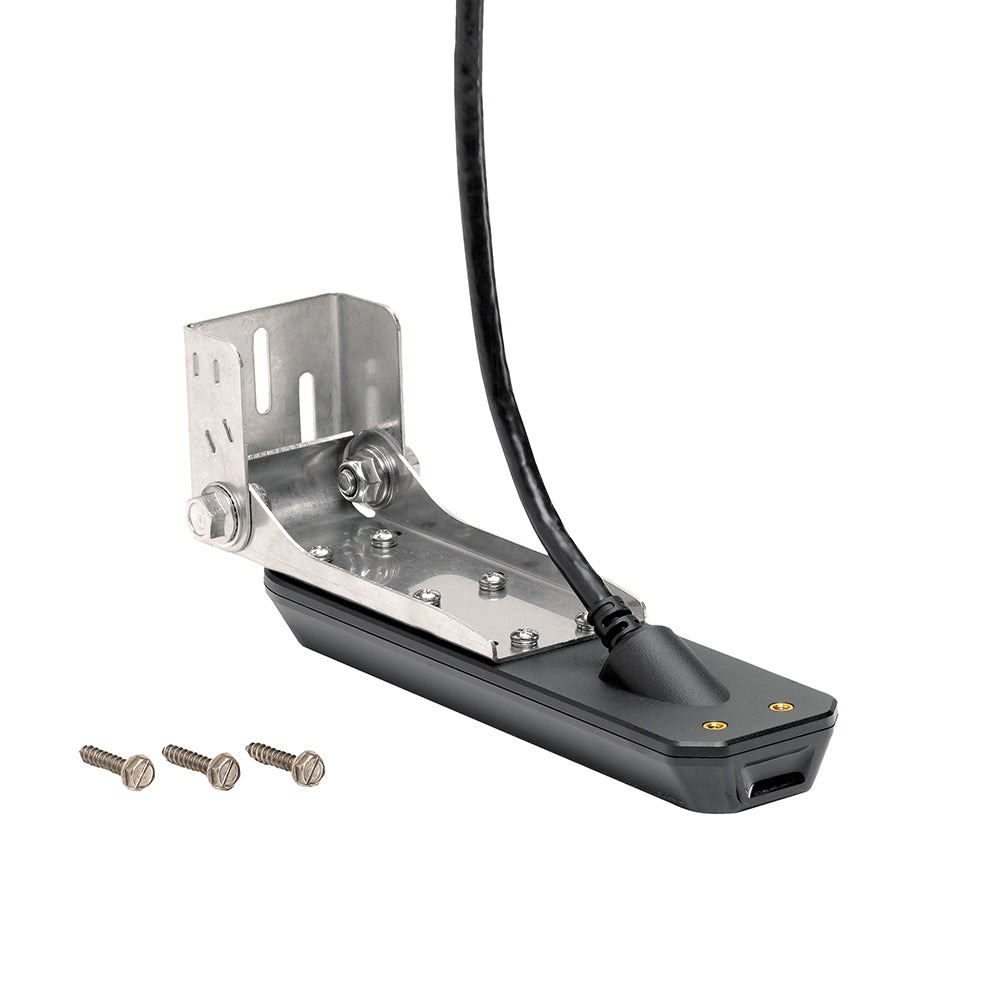

Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer w/Temp f/SOLIX [710292-1]
- Regular price
-
$449.99
- Regular price
-
List:-Infinity% off ($-449.99) - Sale price
-
$449.99
- Unit price
- per
XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™
MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.
Features:
- This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
Specifications:
- Cable Length (Feet): 20'
- Temperature: Yes
- Speed Included: No

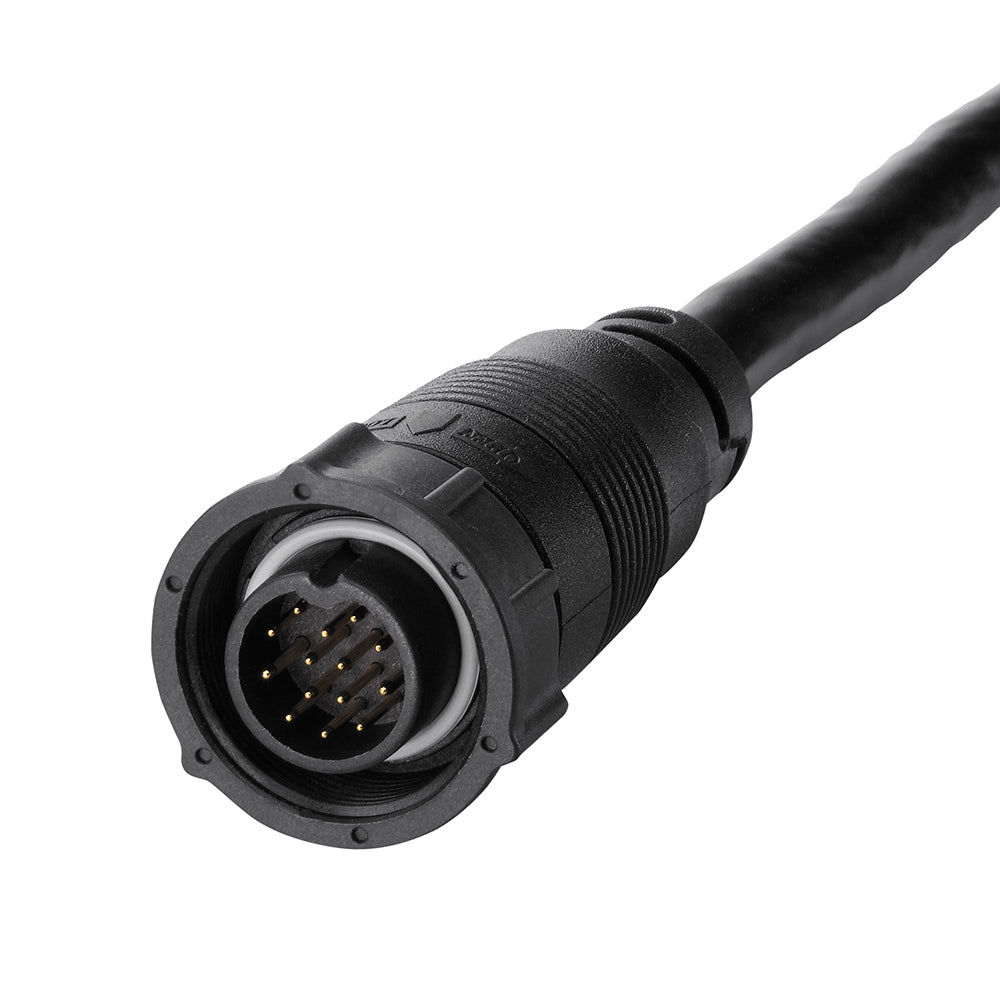

- Pins: 14
- Mounting Style: Transom
- Imagining: Standard/Down/Side
- Chirp: High Wide
- Box Dimensions: 4"H x 9"W x 15"L WT: 2.9 lbs
- UPC: 082324053252
Owner's Manual (pdf)
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™
MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.
Features:
- This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
Specifications:
- Cable Length (Feet): 20'
- Temperature: Yes
- Speed Included: No
- Pins: 14
- Mounting Style: Transom
- Imagining: Standard/Down/Side
- Chirp: High Wide
- Box Dimensions: 4"H x 9"W x 15"L WT: 2.9 lbs
- UPC: 082324053252
Owner's Manual (pdf)
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Humminbird
For over 50 years Humminbird has operated with one goal in mind: create difference-making days for anglers out on the water. Day after day, year after year, we’ve done just that. If you’re looking to find fish and make the most of your time on the water, you’ve come to the right place. From seeing your prey to tracking your GPS location to understanding your surroundings, Humminbird can help you do it all.
