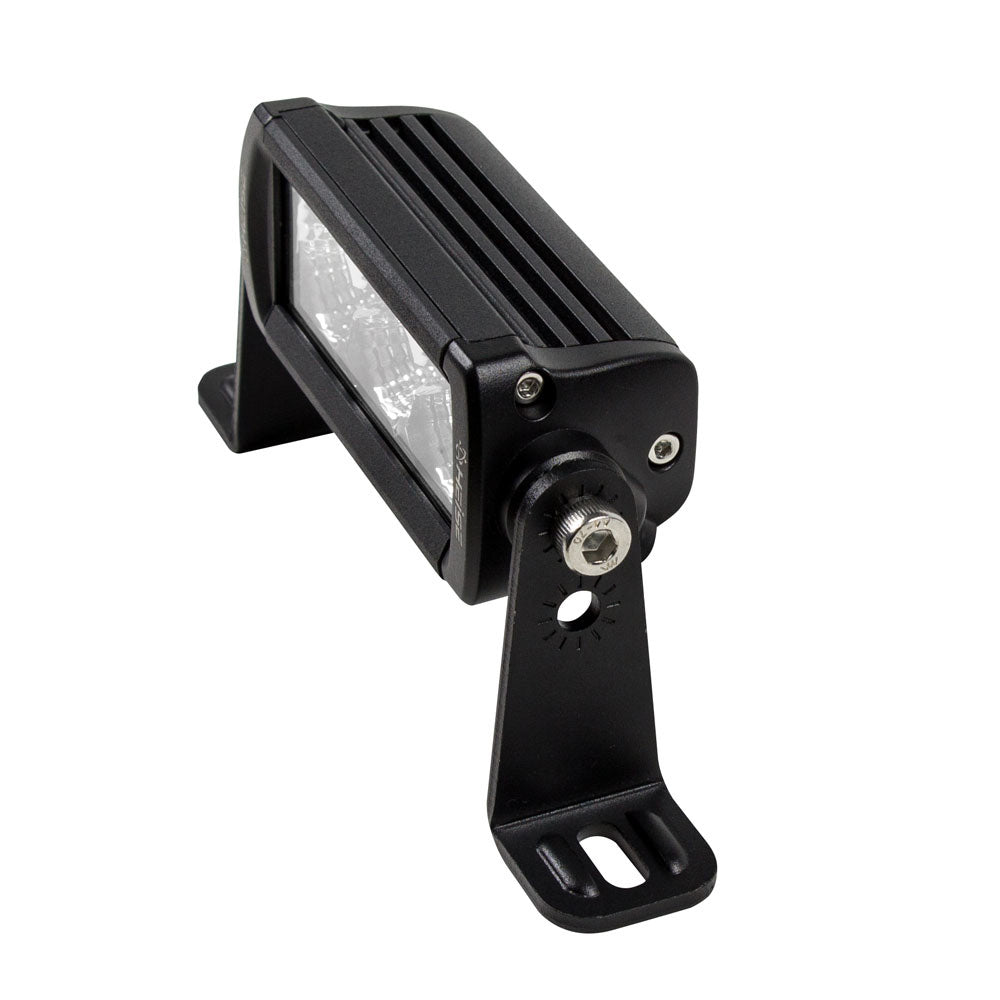

HEISE Single Row Slimline LED Light Bar - 5-1/2" [HE-SL550]
Single Row Slimline LED Light Bar - 5-1/2"SPECS Input Voltage: 10–30V DC Wattage: 9W (3–3W OSRAM LEDs) Raw Lumens: 720 LUX @ 10M: 10 Color Temperature: 6000K Beam Pattern: 90° Flood CONSTRUCTION Housing Material: Powder Coated Aluminum Housing Color: Black Membrane: Gore™ Lens Material: PC Mounting Bracket: Die–cast Aluminum Mounting:... read more
SKU:
CWR-69741
Vendor:
HEISE LED Lighting Systems
Availability:
2
Qty In Stock
Product Type:
Lighting
- Regular price
-
$123.99
- Regular price
-
List: $137.9910.15% off ($14.00) - Sale price
-
$123.99
- Unit price
- per
Single Row Slimline LED Light Bar - 5-1/2"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 9W (3–3W OSRAM LEDs)
- Raw Lumens: 720
- LUX @ 10M: 10
- Color Temperature: 6000K
- Beam Pattern: 90° Flood
CONSTRUCTION
- Housing Material: Powder Coated Aluminum
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die–cast Aluminum
- Mounting: Side and Bottom
- Hole Dimensions:
- Brackets turned inward – 5.25"
- Brackets turned outward – 7.25"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 2"
- Depth of Light Bar Itself: 2"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: .4 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Beam Pattern: Flood
- Length (Inches): 5.5"
- Housing: Black
- Voltage - Input Range (Volts): 10-30v
- Box Dimensions: 5"H x 5"W x 16"L WT: 2.15 lbs
- UPC: 086429317400
