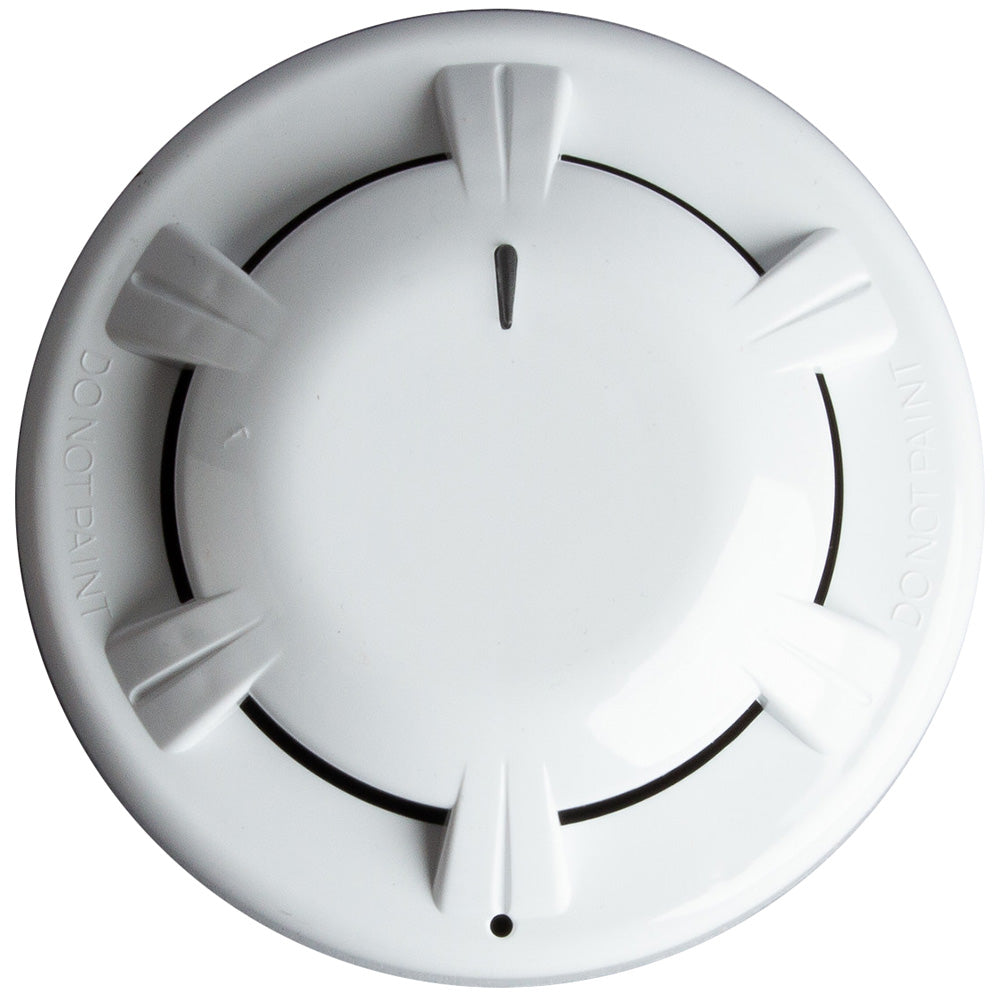

Fireboy-Xintex Optical Smoke Detector w/Base [OMSD-01-DB-R]

Name: Fireboy-Xintex Optical Smoke Detector w/Base [OMSD-01-DB-R]
Brand: Fireboy-Xintex
SKU: CWR-98649
Price: 199.99 USD
Availability: OutOfStock

Optical Smoke Detector with BaseOptical smoke detectors have consistently been recognized as suitable detectors for general use. They are regarded as particularly suitable for smoldering fires and escape routes. This smoke detector is also designed to significantly reduce the incidence of false alarms through over-sensitivity to transient phenomena.Features: Recommended for... read more

SKU: CWR-98649

Vendor: Fireboy-Xintex

Availability: Out Of Stock

Product Type: Fume Detectors

Regular price: $199.99
Regular price: ~~List: $200.00~~ 0.01% off ($0.01)
Sale price: $199.99
Unit price: per

Quantity

Compare

SHOP WITH CONFIDENCE

RECREATION OUTFITTERS STANDS BEHIND EVERY TRANSACTION

100%

Satisfaction Guaranteed

Easy Shipping

Price Match

Shipping & Returns

When Will My Item Arrive?

Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.

We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:

Your freight carrier will call you to schedule a delivery window of about 4–8 hours
You’re required to be physically present at the specified delivery location during the scheduled window
Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
You must sign for the shipment to indicate that you’ve accepted the delivery

Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.

This item leaves our warehouse within 30-Day Returns

Return all new, unused, and unassembled items in their original packaging, and we'll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items not applicable for returns.

No Restocking Fee

Most companies charge a restocking fee. We just don't do business that way.

Optical Smoke Detector with Base

Optical smoke detectors have consistently been recognized as suitable detectors for general use. They are regarded as particularly suitable for smoldering fires and escape routes. This smoke detector is also designed to significantly reduce the incidence of false alarms through over-sensitivity to transient phenomena.

Features:

Recommended for use as general-purpose smoke detectors for early warning of fires in most areas
Works well in black as well as in white smoke
Compensation for slow changes in sensitivity
Extra confirmation of smoke before an alarm signal is given

Specifications:

Sampling Frequency: Once every four seconds
Operating Voltage: 8.5 V dc to 33 V dc
Supply Wiring: Two wire supply, polarity sensitive
Power-up Time: < 20 seconds
Minimum ‘Detector Active’ Voltage: 6 V
Minimum Holding Current: 8 mA
Minimum Voltage to Light Alarm LED: 5 V
Alarm Reset Time: One second
Alarm Indicator: Integral indicator with 360º visibility
Operating & Storage Temperature: -40ºC to +70ºC
Humidity (no condensation or icing): 0% to 98% RH

Operation:

Optical Smoke Detectors work on the well-established light scatter principle
The remarkable optical design of this Smoke Detector enables it to respond to a wide spectrum of fires
The sensing chamber contains an optical sensor that measures back-scattered light as well as the more usual forward-scattered light
The detector is calibrated so that it is highly reliable in detecting fires but is much less likely to generate false alarms
The stability of the detector-high reliability, low false alarm rate is further increased by the use of algorithms to decide when the detector should change to the alarm state
Removes the likelihood of a detector producing an alarm as a result of smoke from smoking materials or another non-fire source

Specifications:

Fume Type: Smoke
Box Dimensions: 2"H x 5"W x 7"L WT: 0.35 lbs
UPC: 619749321095
