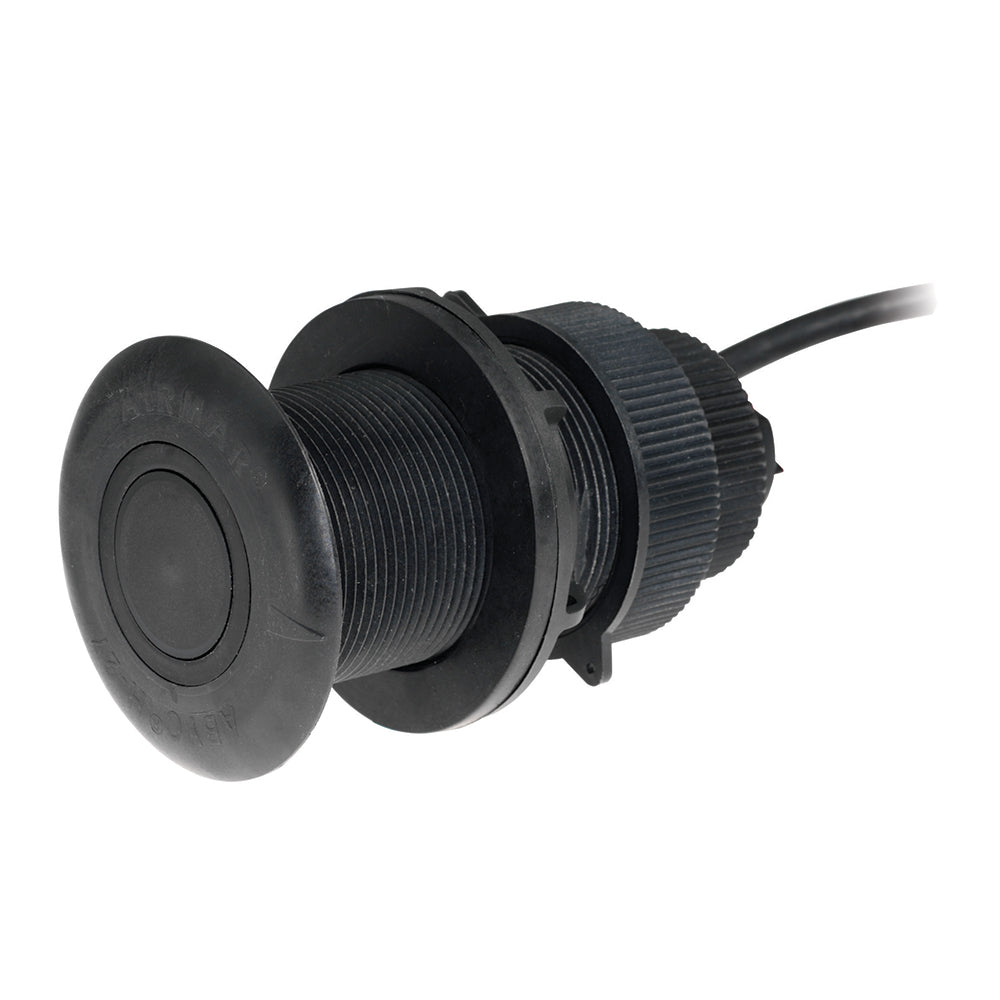

Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20 [DT820PV-235-N2]
- Regular price
-
$395.85
- Regular price
-
List:-Infinity% off ($-395.85) - Sale price
-
$395.85
- Unit price
- per
DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20°
- Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20°
- Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS
- Connector: 5-Pin NMEA 2000
Features:
- Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
- Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
- Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications
- Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
- Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
- Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
- 235 kHz frequency prevents mutual interference with other echo sounders on vessel
- Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing
Specifications:
- Mount: Thru-hull
- Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise)
- Housing Material: Plastic
- Connector: 5-pin NMEA 2000®
- Cable Length: 20 ft.
- Frequency: 235 kHz
- Cone: 12°
- Power: 100 Watts RMS
- Depth Sensor Range: 1.6 - 594 ft.
- Acoustic Window Material: Urethane
- Compatible Hull Materials: Fiberglass or metal
- Hole Diameter for Installation: 2"
- Dimensions: 4.92" H x 2.94" OD
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20°
- Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20°
- Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS
- Connector: 5-Pin NMEA 2000
Features:
- Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
- Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
- Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications
- Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
- Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
- Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
- 235 kHz frequency prevents mutual interference with other echo sounders on vessel
- Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing
Specifications:
- Mount: Thru-hull
- Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise)
- Housing Material: Plastic
- Connector: 5-pin NMEA 2000®
- Cable Length: 20 ft.
- Frequency: 235 kHz
- Cone: 12°
- Power: 100 Watts RMS
- Depth Sensor Range: 1.6 - 594 ft.
- Acoustic Window Material: Urethane
- Compatible Hull Materials: Fiberglass or metal
- Hole Diameter for Installation: 2"
- Dimensions: 4.92" H x 2.94" OD
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Airmar
Founded in 1982 by Stephen Boucher, Airmar is a family owned and operated manufacturing company in Milford, New Hampshire. With over 30 years of experience, Airmar has become synonymous with world-class acoustic sensing technology. Our first product introduction was a transom mounted transducer for fish-finders. Today, Airmar develops and manufactures transducers for a diverse range of applications, including air-ranging industrial transducers, underwater scientific and survey transducers, weather sensing instruments and our extensive line of fish-finding transducers, headlined by our latest wide-beam Chirp products.
