Raymarine

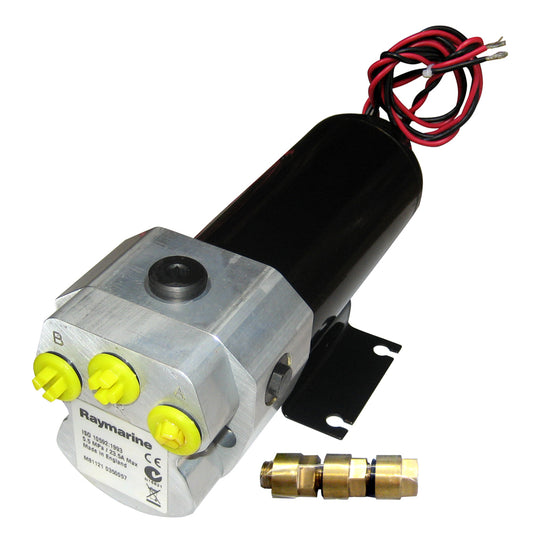

Type 1 Pump 12voltReversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams. The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each...

Type 2 Pump 12VoltReversing hydraulic pump for use with steering systems equipped with 9.821 cubic inch (160-350cc) hydraulic steering rams. Compatible with 400 Series corepacks. Designed for boats with existing hydraulic steering systems. Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 4"W x 6"L WT: 7.6 lbs UPC: 023193811215 Owner's Manual...

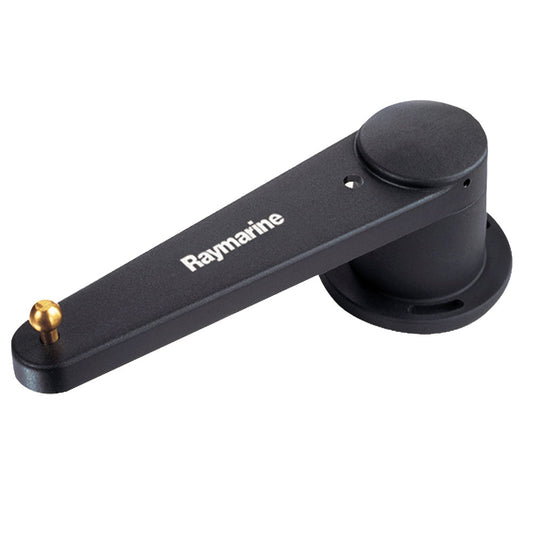

Rotary Rudder ReferenceReplacement Rudder Reference Transducer used on Raymarine and Autohelm autopilot systems. Includes 10 meter cable and mounting hardware. Specifications: Type: Parts Box Dimensions: 4"H x 5"W x 14"L WT: 1.4 lbs UPC: 023193811055 Quick Guide (pdf)

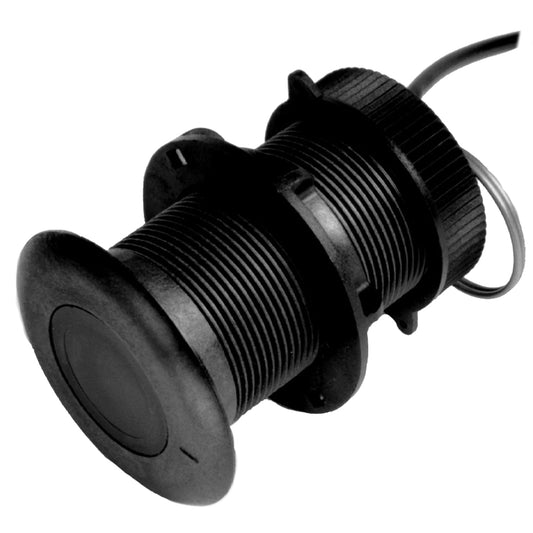

Lexan Depth Transducer f/ST60 & ST290P19 Plastic Low Profile Through Hull Transducer Key Features Includes 45' cable Frequency: 200 kHz Compatible hull material: metal & fiberglass Hole diameter for installation: 2" Compatible models ST60+ i50 ST70 / i70 (requires ST70 depth pod or ITC5 - sold separately) Specifications: Temperature: No...

Compatible with the following instruments: ST70* ST60+ ST290 Compatible hull material: wood and fiberglassCable: 45 ft. cableHole diamater for installation: 7/8"Includes fairing block.*Using with ST70 requires purchase of ST70 Depth Pod, sold seperately. Specifications: Cable Length (Feet): 45' Speed Included: No Mounting Style: Thru-Hull Chirp: No Temperature: No Box Dimensions:...

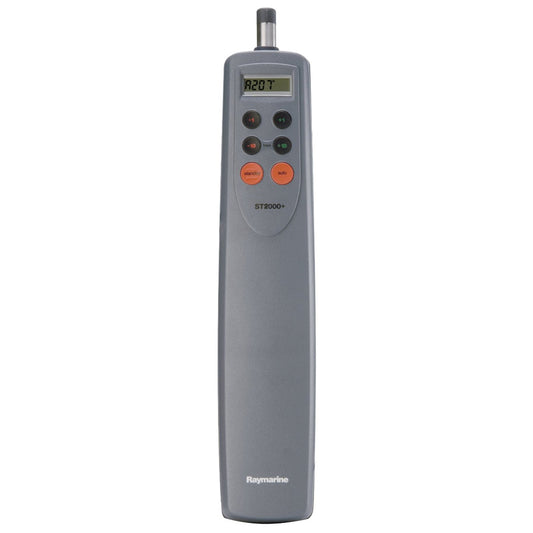

ST2000 Plus Tiller PilotST2000 Plus tiller autopilot for tiller steered sailing vessels to 10,000 lbs (4,500 kg)*Note: Always take the fully laden displacement weight of the vessel into account; this is often 20% above the designed displacement.Includes: Instruction Manual Plus Tiller Pilot 12V Socket Tiller Pin (sold in packages of...

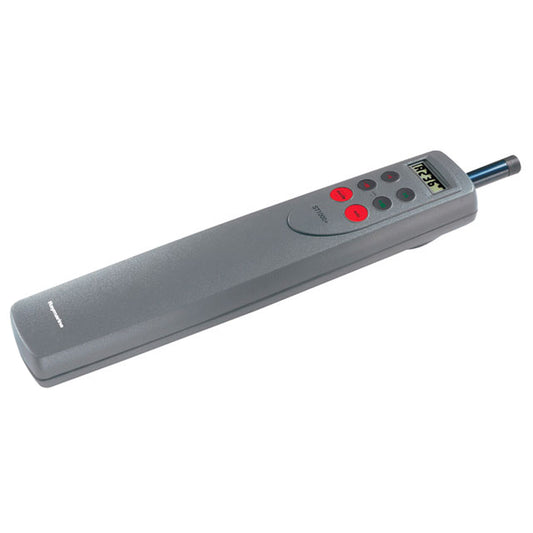

ST1000 Plus Tiller PilotST1000 Plus tiller autopilot for tiller steered sailing vessels up to 6,600 lbs (3,000 kg)*Note: Always take the fully laden displacement weight of the vessel into account; this is often 20% above the designed displacement.Includes: Instruction Manual Plus Tiller Pilot 12V Socket Tiller Pin  Mounting Socket  Specifications:...

Adjustable In-Hull Transducer 600 Watt adjustable angled in hull transducer. (P79)Compatible with the following Echo Sounders:SL Series: SL755RC, SL760RC , SL1250, and SL1250RChsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RChsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRCCompatible hull material: fiberglassMax Power: 600 WFrequency: 200/50 kHzBeam Angles: 200 kHz 11...

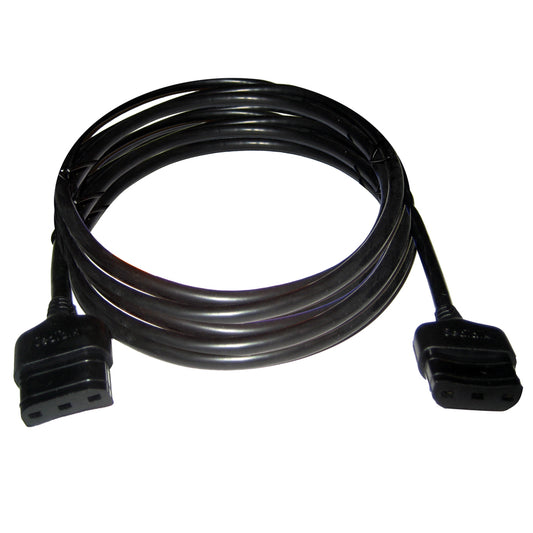

SeaTalk Interconnect Cable, 3ft. (1m)SeaTalk Interconnect cable for linking SeaTalk devicesSeaTalk interconnect cable for linking SeaTalk devices. Flat style, 3-pin molded connectors on each end.

SeaTalk Interconnect Cable, 16ft. 3in. (5m) SeaTalk Interconnect cable for linking SeaTalk devices SeaTalk interconnect cable for linking SeaTalk devices. Flat style, 3-pinmolded connectors on each end.

SeaTalk Interconnect Cable, 29ft. 3in. (9m) SeaTalk Interconnect cable for linking SeaTalk devices SeaTalk interconnect cable for linking SeaTalk devices. Flat style, 3-pinmolded connectors on each end.

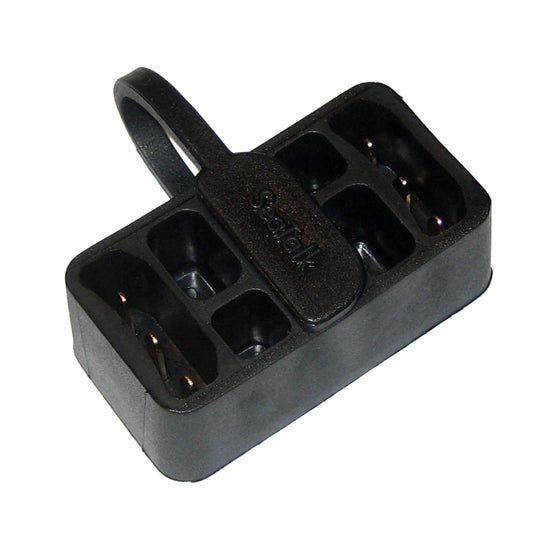

SeaTalk 3-Way Junction BlockJunction block with 3 SeaTalk sockets.

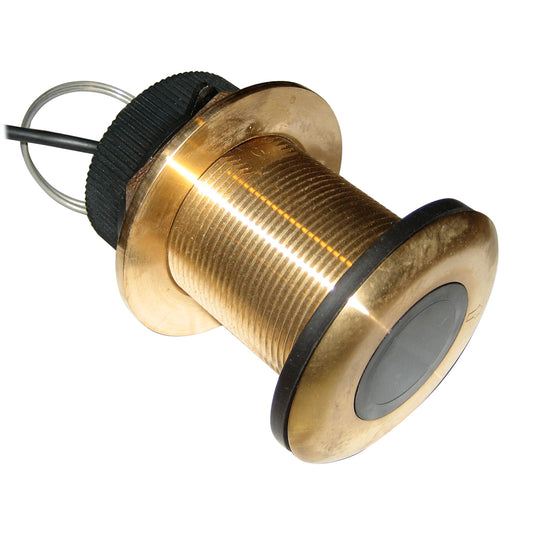

Bronze retractable Depth transducer.Frequency - 200 kHz Specifications: Temperature: No Speed Included: No Mounting Style: Thru-Hull Chirp: No Cable Length (Feet): 45' Box Dimensions: 4"H x 6"W x 8"L WT: 3.3 lbs UPC: 000000140850

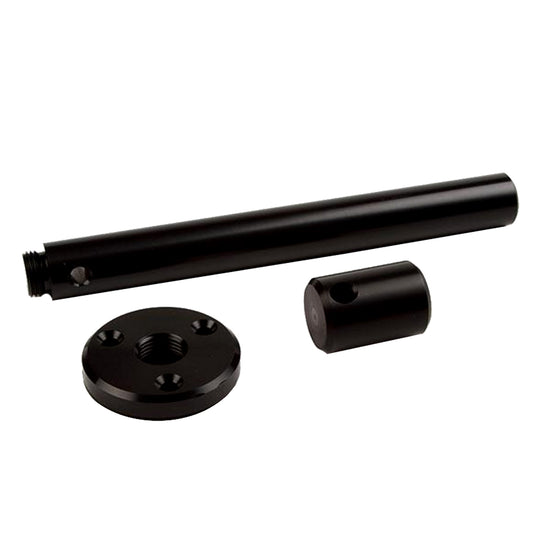

Cantilever Mounting SocketUsed to mount the fixed end of the tiller autopilot to a vertical surface such as a cockpit sidewall.

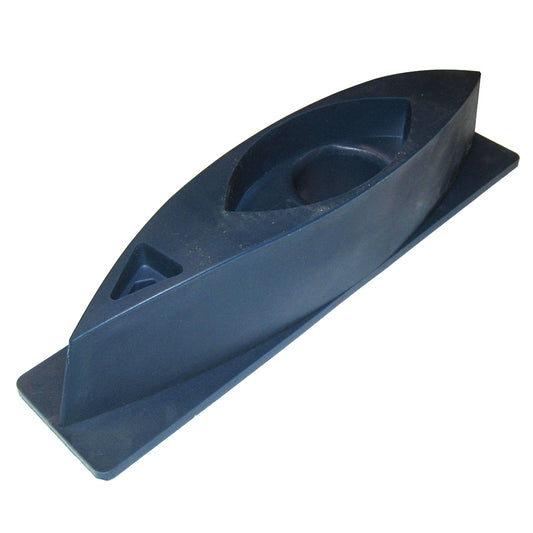

E66023 Fairing Block f/ B744VThis E66023 is a fairing block designed for use with the Raymarine B744V tranducer. Specifications: Type: Misc Box Dimensions: 4"H x 4"W x 15"L WT: 1.9 lbs Owner's Manual (pdf)Brochure (pdf)

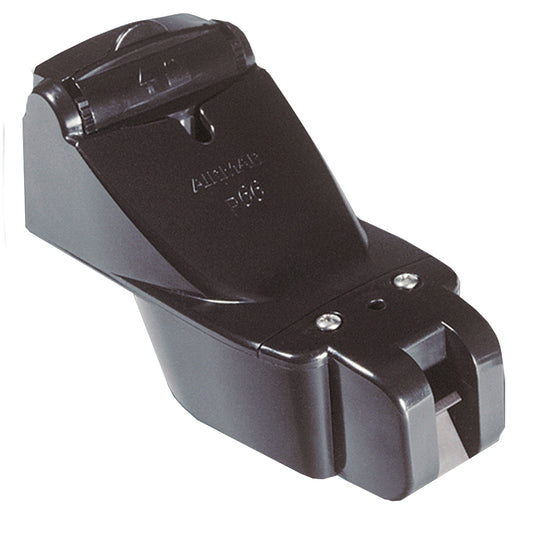

Optional High Speed Transom Mount Transducer 600 Watt Optional High Speed transom mount transducer with depth speed and temperature. Dual Frequency 200/50 KHz. (P66)Compatible with the following Echo Sounders:SL Series: SL755RC, SL760RC , SL1250, and SL1250RChsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RChsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and...

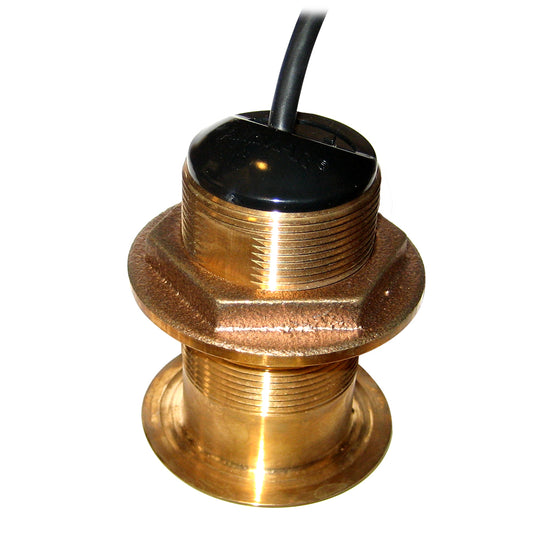

Low Profile Bronze Depth Only Depth only low profile transducer (B117)Compatible with the following Echo Sounders: DSM250 and DSM300 SL Series: SL755RC, SL760RC , SL1250, and SL1250RC hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC Compatible hull material: wood and fiberglassMax...

Standard Forward Wind TransducerCompatible with: ST70* ST60+ ST290 i70 Standard Length: 14 1/2"Includes 100ft. Cable.*Using with ST70 requires purchase of ST70 Wind Pod, sold seperately. Specifications: Instrument Function: Wind Box Dimensions: 5"H x 12"W x 20"L WT: 5 lbs UPC: 723193220788

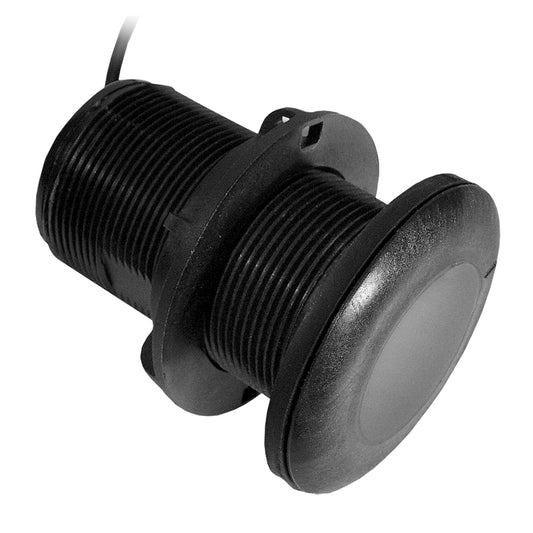

Compatible with the following instruments: ST70* ST60+ ST290Compatible hull material: Aluminum and fiberglassCable: 45 ft. cableHole diameter for installation: 2"*Using with ST70 requires purchase of ST70 Depth Pod, sold seperately. Specifications: Temperature: No Speed Included: No Mounting Style: Thru-Hull Chirp: No Cable Length (Feet): 45' Box Dimensions: 4"H x 6"W...

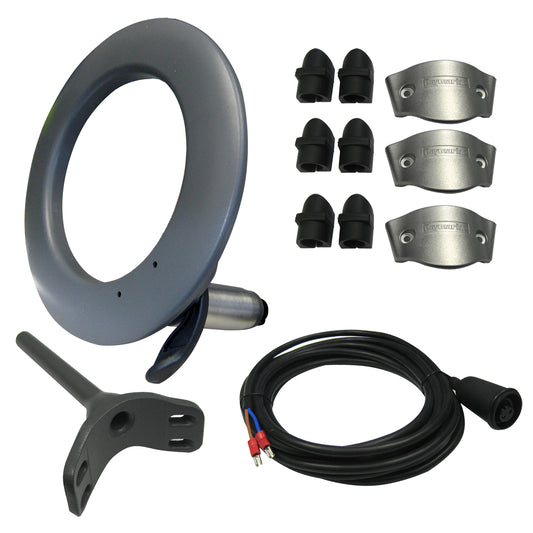

ST4000MK2/ST4000+ Wheel Drive Only *Not A Complete PilotThe Raymarine ST4000MK2 is a SeaTalk compatible autopilot that will steer your boat to a heading automatically, accurately, and reliably.*Package contains wheel drive only - not a complete autopilot. Specifications: Type: Parts Box Dimensions: 8"H x 15"W x 16"L WT: 7.1 lbs UPC:...
