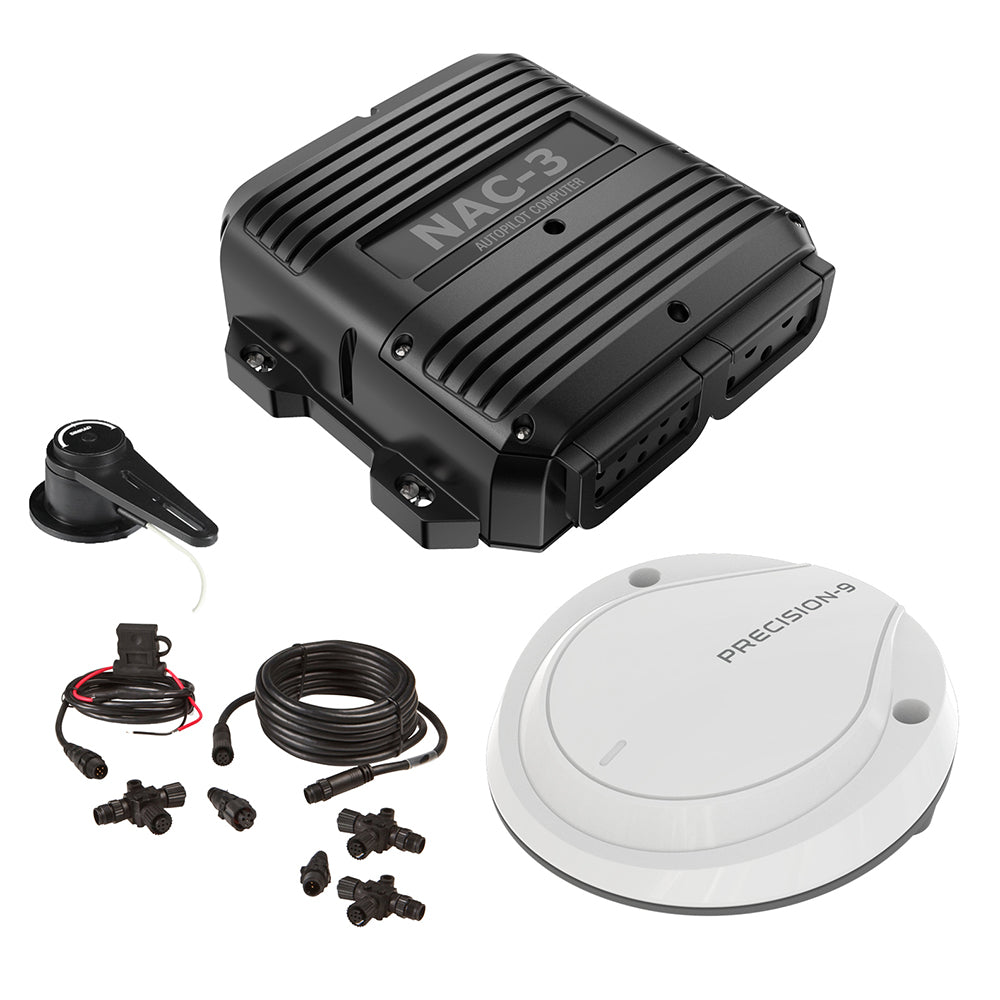

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit [000-13336-001]
![Octopus Autopilot Drives Autopilots Octopus 30" Hose & Fitting Kit Including Orb & NPT Helm Fittings [OC17SUK42]](http://recreation-outfitters.com/cdn/shop/products/octopus-autopilot-drives-autopilots-octopus-30-hose-fitting-kit-including-orb-npt-helm-fittings-oc17suk42-628309248321-28971631149193_60x.jpg?v=1643729387)
![B&G Autopilots BG Hydraulic Ram Type 1 - 12V [RAM-T1-12V]](http://recreation-outfitters.com/cdn/shop/products/b-g-autopilots-bg-hydraulic-ram-type-1-12v-ram-t1-12v-738087005419-29573121278089_60x.jpg?v=1653711455)
NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter KitComprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a... read more
- Regular price
-
$2,449.00
- Regular price
-
List:-Infinity% off ($-2,449.00) - Sale price
-
$2,449.00
- Unit price
- per
SHOP WITH CONFIDENCE
RECREATION OUTFITTERS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within time frame shown under the add to cart button.
90-Day Returns
Return all new, unused, and unassembled items in their original packaging, and we'll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items not applicable for returns.
Restocking FeeFor items that have been dropshipped from our supplier. A 20% restocking fee will be deducted from any eligible return
NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit
Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.
The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).
Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.
RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable
N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators
Specifications:
- Temperature, operation: 0 to +55°C
- Temperature, storage: -32 to +70°C
- Protection: IPx7
- Weight in Kg: 0.7kg, 1.6lbs
- Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58"
- Mounting: Bulkhead
- Construction: Plastic
- Color: Black
- Cable inlet: Grommet (Spare Incl)
- Local Power supply: 12/24 V DC +10-30%
- NMEA 2000 Load Equivalent number (50mA): 1
- Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s
- On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA
- Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A
- Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000
- NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA
- Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
- External alarm output for buzzer/relay: Max 100mA, voltage level as local supply
- IEC 61162-1 input (NMEA0183 In): 1 ch
- IEC 61162-1 output (NMEA0183 Out): 1 ch
- IEC 61162-1 speed: 4.8 & 38.4 kbaud
- NMEA2000: Certified (pending)
Specifications:
- Steering Type: Hydraulic
- Box Dimensions: 14"H x 14"W x 18"L WT: 8.8 lbs
- UPC: 9420024155646
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit
Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.
The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).
Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.
RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable
N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators
Specifications:
- Temperature, operation: 0 to +55°C
- Temperature, storage: -32 to +70°C
- Protection: IPx7
- Weight in Kg: 0.7kg, 1.6lbs
- Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58"
- Mounting: Bulkhead
- Construction: Plastic
- Color: Black
- Cable inlet: Grommet (Spare Incl)
- Local Power supply: 12/24 V DC +10-30%
- NMEA 2000 Load Equivalent number (50mA): 1
- Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s
- On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA
- Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A
- Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000
- NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA
- Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
- External alarm output for buzzer/relay: Max 100mA, voltage level as local supply
- IEC 61162-1 input (NMEA0183 In): 1 ch
- IEC 61162-1 output (NMEA0183 Out): 1 ch
- IEC 61162-1 speed: 4.8 & 38.4 kbaud
- NMEA2000: Certified (pending)
Specifications:
- Steering Type: Hydraulic
- Box Dimensions: 14"H x 14"W x 18"L WT: 8.8 lbs
- UPC: 9420024155646
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Simrad
Simrad Yachting is a manufacturer of marine electronics for the leisure and professional markets. A member of the Navico Group family of brands, Simrad Yachting develops, manufactures and sells navigation systems, autopilots, radar systems and more.
