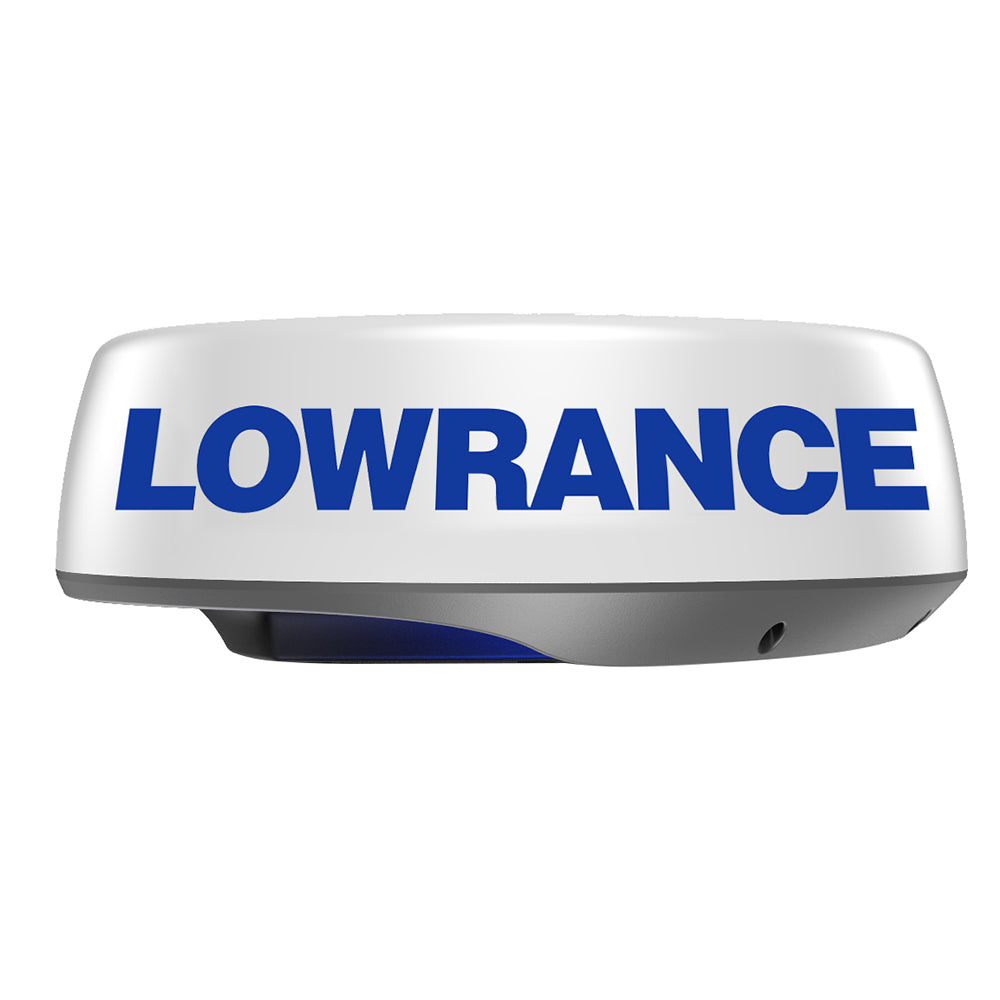

Lowrance HALO24 Radar Dome w/Doppler Technology [000-14541-001]
![Simrad Radars Simrad GO9 XSE Chartplotter Radar Bundle HALO20+ Active Imaging 3-in-1 Transom Mount Transducer C-MAP Discover Chart [000-15617-002]](http://recreation-outfitters.com/cdn/shop/products/simrad-radars-simrad-go9-xse-chartplotter-radar-bundle-halo20-active-imaging-3-in-1-transom-mount-transducer-c-map-discover-chart-000-15617-002-9420064120123-29502921113737_60x.jpg?v=1652381439)
![Lowrance Radars Lowrance HALO20+ 20" Radar Dome w/5M Cable [000-14542-001]](http://recreation-outfitters.com/cdn/shop/products/lowrance-radars-lowrance-halo20-20-radar-dome-w-5m-cable-000-14542-001-9420024173848-29548693291145_60x.jpg?v=1653355953)
HALO24 Radar Dome with Doppler TechnologyHALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome... read more
- Regular price
-
$3,099.00
- Regular price
-
List:-Infinity% off ($-3,099.00) - Sale price
-
$3,099.00
- Unit price
- per
SHOP WITH CONFIDENCE
RECREATION OUTFITTERS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within time frame shown under the add to cart button.
90-Day Returns
Return all new, unused, and unassembled items in their original packaging, and we'll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items not applicable for returns.
Restocking FeeFor items that have been dropshipped from our supplier. A 20% restocking fee will be deducted from any eligible return
EXCEPTIONS: Holiday Trees and Decor are not eligible for return after the corresponding holiday. For instance, a tree purchased on December 10th must be returned before Christmas of that year, even if the 90-day return policy period has not yet expired.
HALO24 Radar Dome with Doppler Technology
HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna.
See Near and Far with One Compact Dome
Perfect for a wide range of sailboats, fishing boats and smaller powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode, which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Ultimate View for Collision Avoidance
HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings
VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.
Key Features:
- 48 nm range from a compact 24" dome
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both near and far
- Ultra-fast 60 RPM operation at ranges up to 2nm
- VelocityTrack™ Doppler technology for collision avoidance
- Easy operation with harbour, offshore, weather, and bird modes
- MARPA target tracking (up to 10 targets, 20 in dual range).
- Ready instantly from standby
- Lightweight, low profile dome design, with integrated LED lights
- 5m Radar Cable
Specifications:
Environmental
- Operating Temperature: -25° to +55°C (-13° to +130°F)
- Relative humidity: +35° C (95° F), 95% RH
- Waterproof: IPX6
- Max relative wind velocity: 51 m/sec (100 Knots)
- Complience: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002
Power & Dimensions
- Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V
- Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA
- DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)
- Reverse polarity protection: Yes
- Minimum startup voltage: 10.75 V DC
- Transmitter source (pre-heating time): No magnetron – Instant On
Physical
- Outside dimensions: Ø Diameter 610 mm (24”), Height 225 mm (8.9”)
- Scanner weight (no cable): 6.75kg (14.9 lbs)
Radar and Antenna Parameters
- Radar ranges: 100M (328 ft) to 48nm with 18 range settings, (nm/sm/km)
- Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent)
- Transmitter frequency: X-band - 9.4 to 9.5 Ghz
- Transmitter source (warm-up time): No Magnetron – all solid state. Instant On™
- Plane of polarization: Horizontal Polarization
- Transmitter peak power output: 25W
- Minimum range: 6M (19.7')
- Sweep repetition frequency: 700-2400 Hz (mode dependent)
- Pulse length: 0.04 - 64 usec
- Sweep bandwidth: 48 MHz max
- Horizontal beam width (Tx and Rx antenna): 3.9° nominal (-3 dB width)
- Target Seperation Control: OFF: 3.9°+/-10% (-3 dB width nominal), LOW: 3.4°+/-10% (-3 dB width nominal), MED: 2.5°+/-10% (-3 dB width nominal), HIGH: 2.0°+/-10% (-3 dB width nominal)
- Vertical beam width (Tx and Rx antenna): 22° (-3B width nominal)
- Side lobe level (Tx and Rx antenna): Below -18 dB (within ±10°);Below -24 dB (outside ±10°)
- Noise figure: Less than 5 dB nominal
Communications/Cabling
- Protocol: Ethernet 100 Base T
- Maximum inter connecting cable length: 30M (98.5') – available as option, use NEP-2 for longer cable runs
Specifications:
- Range - Max (Miles): 48nm
- Array Size (Inches): 24"
- Box Dimensions: 11"H x 28"W x 30"L WT: 26.75 lbs
- UPC: 9420024173831
