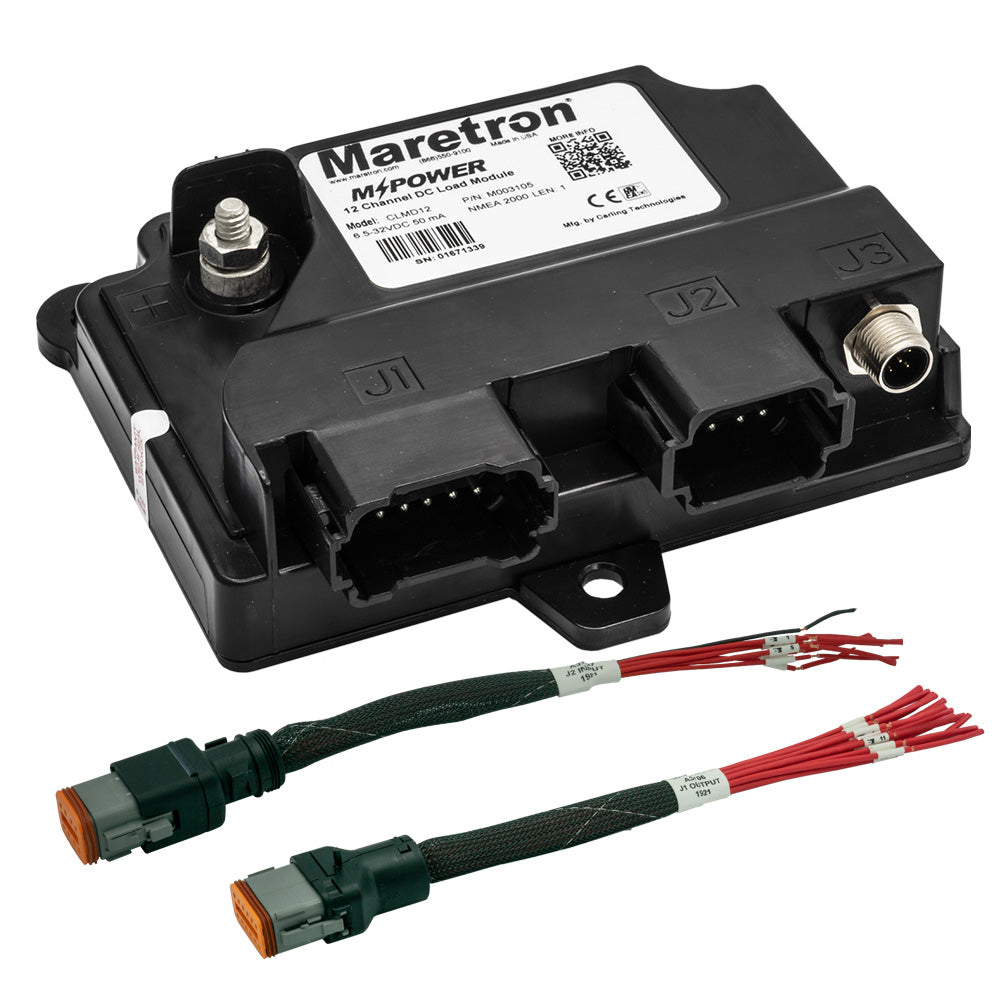

Maretron MPower 12 Channel DC Load Module NMEA 2K w/12" Pigtail Adapter Cable for J1 J2 Connectors [CLMD12-R]
![Maretron MPower 12 Channel DC Load Controller Module w/NMEA 2K - No Connectors [CLMD12]](http://recreation-outfitters.com/cdn/shop/files/107975XL_60x.jpg?v=1759867023)
![Garmin 40' Marine Network Cable - RJ45 [010-10552-00]](http://recreation-outfitters.com/cdn/shop/files/16790XL_60x.jpg?v=1747422479)
MPower 12 Channel DC Load Module NMEA 2K with 12" Pigtail Adapter Cable for J1 & J2 ConnectorsDesigned for vessels of all sizes with smaller loads, the MPower® CLMD12 is a compact 12-Channel DC Load Controller Module. Two of the 12 breakers handle a maximum of 12 amps, six handle... read more
- Regular price
-
$695.00
- Regular price
-
List: $0.00-Infinity% off ($-695.00) - Sale price
-
$695.00
- Unit price
- per
SHOP WITH CONFIDENCE
RECREATION OUTFITTERS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within time frame shown under the add to cart button.
90-Day Returns
Return all new, unused, and unassembled items in their original packaging, and we'll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items not applicable for returns.
Restocking FeeFor items that have been dropshipped from our supplier. A 20% restocking fee will be deducted from any eligible return
EXCEPTIONS: Holiday Trees and Decor are not eligible for return after the corresponding holiday. For instance, a tree purchased on December 10th must be returned before Christmas of that year, even if the 90-day return policy period has not yet expired.
MPower 12 Channel DC Load Module NMEA 2K with 12" Pigtail Adapter Cable for J1 & J2 Connectors
Designed for vessels of all sizes with smaller loads, the MPower® CLMD12 is a compact 12-Channel DC Load Controller Module. Two of the 12 breakers handle a maximum of 12 amps, six handle a maximum of 10 amps, and four handle a maximum of 5 amps, with a total current capacity of 75 Amps. Additionally, circuits can be paralleled.
If a smaller circuit needs to be protected, each of the 12 breakers can be set to trip at lower current levels using the new Maretron N2KAnalyzer® V3 software. In addition, the CLMD12 has inputs for up to 7 hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc.
The CLMD12 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD12 is that it reports the current through each of the 12 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.
For manual control of the loads, an optional MPower 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the CLMD12.
Features:
- NMEA 2000® Interface
- IP67 Rated
- Ignition Protected
- Opto-isolated from NMEA 2000®, eliminating potential ground loops
- Twelve (12) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network
- 2 breakers capable of carrying up to 12 Amps
- 6 breakers capable of carrying up to 10 Amps
- 4 breakers capable of carrying up to 5 Amps
- Individual breaker electrical current monitoring
- Breakers can have Power-Up states defined (ON, OFF, or PREVIOUS STATE)
- Breakers can be locked against inadvertent actuation.
- Seven (7) discrete inputs configurable as Active High or Active Low
- Automatic ECB overcurrent shutdown
- Automatic ECB thermal shutdown (Overtemperature Protection)
Applications:
- Remote control of navigation lights
- Remote control of the boarding lights
- Burnt-out bulb alerts
- Control of area lights with dimming
Specifications:
- AC/DC: DC
- Touchscreen: No
- Box Dimensions: 4"H x 7"W x 10"L WT: 2.3 lbs
- UPC: 873804004181
Quick Guide (pdf)
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
MPower 12 Channel DC Load Module NMEA 2K with 12" Pigtail Adapter Cable for J1 & J2 Connectors
Designed for vessels of all sizes with smaller loads, the MPower® CLMD12 is a compact 12-Channel DC Load Controller Module. Two of the 12 breakers handle a maximum of 12 amps, six handle a maximum of 10 amps, and four handle a maximum of 5 amps, with a total current capacity of 75 Amps. Additionally, circuits can be paralleled.
If a smaller circuit needs to be protected, each of the 12 breakers can be set to trip at lower current levels using the new Maretron N2KAnalyzer® V3 software. In addition, the CLMD12 has inputs for up to 7 hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc.
The CLMD12 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD12 is that it reports the current through each of the 12 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.
For manual control of the loads, an optional MPower 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the CLMD12.
Features:
- NMEA 2000® Interface
- IP67 Rated
- Ignition Protected
- Opto-isolated from NMEA 2000®, eliminating potential ground loops
- Twelve (12) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network
- 2 breakers capable of carrying up to 12 Amps
- 6 breakers capable of carrying up to 10 Amps
- 4 breakers capable of carrying up to 5 Amps
- Individual breaker electrical current monitoring
- Breakers can have Power-Up states defined (ON, OFF, or PREVIOUS STATE)
- Breakers can be locked against inadvertent actuation.
- Seven (7) discrete inputs configurable as Active High or Active Low
- Automatic ECB overcurrent shutdown
- Automatic ECB thermal shutdown (Overtemperature Protection)
Applications:
- Remote control of navigation lights
- Remote control of the boarding lights
- Burnt-out bulb alerts
- Control of area lights with dimming
Specifications:
- AC/DC: DC
- Touchscreen: No
- Box Dimensions: 4"H x 7"W x 10"L WT: 2.3 lbs
- UPC: 873804004181
Quick Guide (pdf)
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Maretron
Maretron products are the world-class standard in vessel monitoring and control. Designed to harness the power of the NMEA 2000® marine networking protocol, Maretron seamlessly integrates a wide array of instrumentation, electronics and boat systems. The 2019 consolidation of Maretron into Carling Technologies strengthens the Maretron brand, expands the product portfolio and provides global product support to OEMs, dealers, and boaters worldwide. All Maretron products are tested and certified to the IEC 60945 standard for Maritime Navigational and Radiocommunication Equipment and Systems.
