Faria Coral 2" Fuel Level Gauge (E-1/2-F) [13001]
- Regular price
-
$34.99
- Regular price
-
List:-Infinity% off ($-34.99) - Sale price
-
$34.99
- Unit price
- per
Coral 2" Fuel Level Gauge (E-1/2-F)

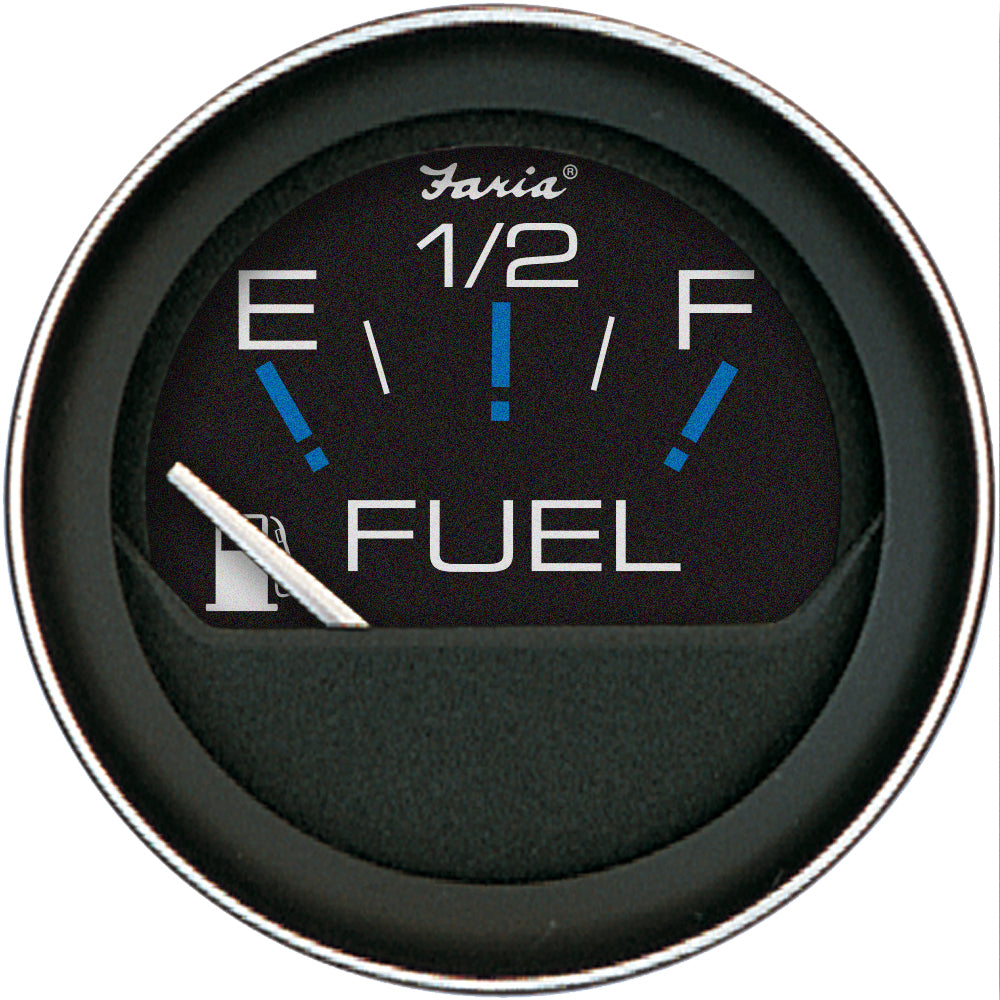

Perimeter-lighted Black dial with stylish White and Blue graphics, Black aluminum bezel with burnished leading edge, contoured White pointer, and flat glass lens.
Fuel Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...
As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.
2" - Hole Size: 2.0625" (53mm)
Specifications:
- Scratch Resistant Lens
- Black Aluminum Bezel
- Contoured White Pointer
Factory P/N GP9346
*Sold as an Individual
**Gauge Cover not Included
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Voltage - Input Range (Volts): 12/24 V
- Gauge Type: Fuel Level
- Gauge Size: 2"
- Series: Coral
- Box Set: No
- Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs
- UPC: 759266130012
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
Coral 2" Fuel Level Gauge (E-1/2-F)
Perimeter-lighted Black dial with stylish White and Blue graphics, Black aluminum bezel with burnished leading edge, contoured White pointer, and flat glass lens.
Fuel Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...
As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.
2" - Hole Size: 2.0625" (53mm)
Specifications:
- Scratch Resistant Lens
- Black Aluminum Bezel
- Contoured White Pointer
Factory P/N GP9346
*Sold as an Individual
**Gauge Cover not Included
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Voltage - Input Range (Volts): 12/24 V
- Gauge Type: Fuel Level
- Gauge Size: 2"
- Series: Coral
- Box Set: No
- Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs
- UPC: 759266130012
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Faria Beede Instruments
Whether you are in need of a simple analog instrument or a sophisticated digital engine monitoring gauge, Faria Beede has the solution that is right for you. We offer a wide range of products that are built rugged enough to survive on a military HMMWV (Humvee) or heavy construction equipment at the edge of the earth. Our maritime and commercial industry gauges have been going strong for over 60 years and provide innovative dashboard application and styling solutions from boats to buses.
